Condition
House Area
1710
Bedroom
3
Toilet
3
Kitchen
1
Veranda
4
Living Room
1
Dining Room
1
Foyer
1
Family Living
1
Required Land Area
1144sft (37'-5" X 30'- 6")

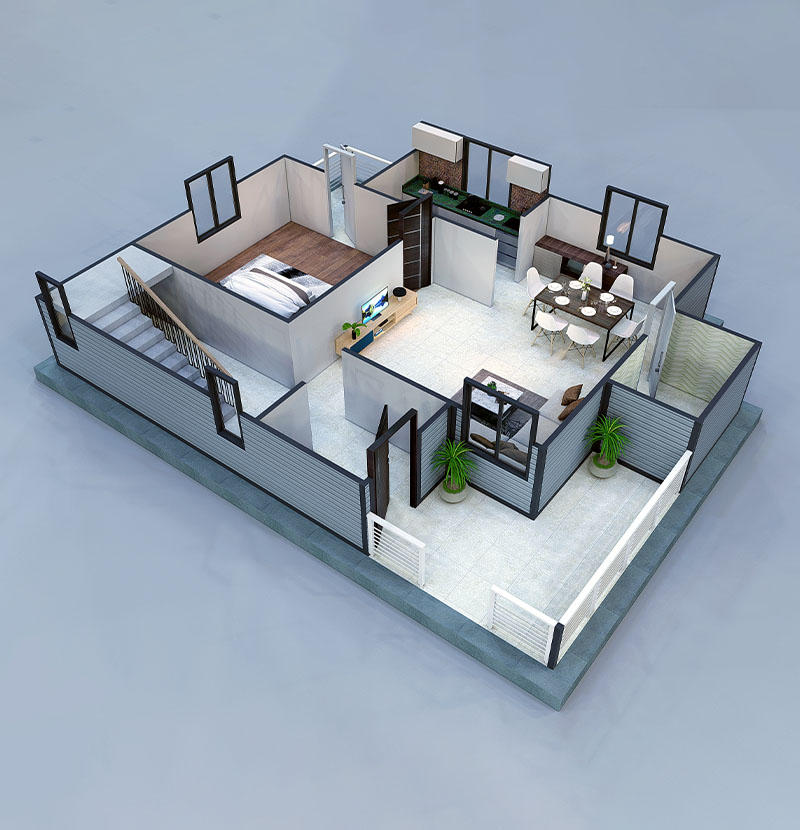

Ground Floor Interior Design

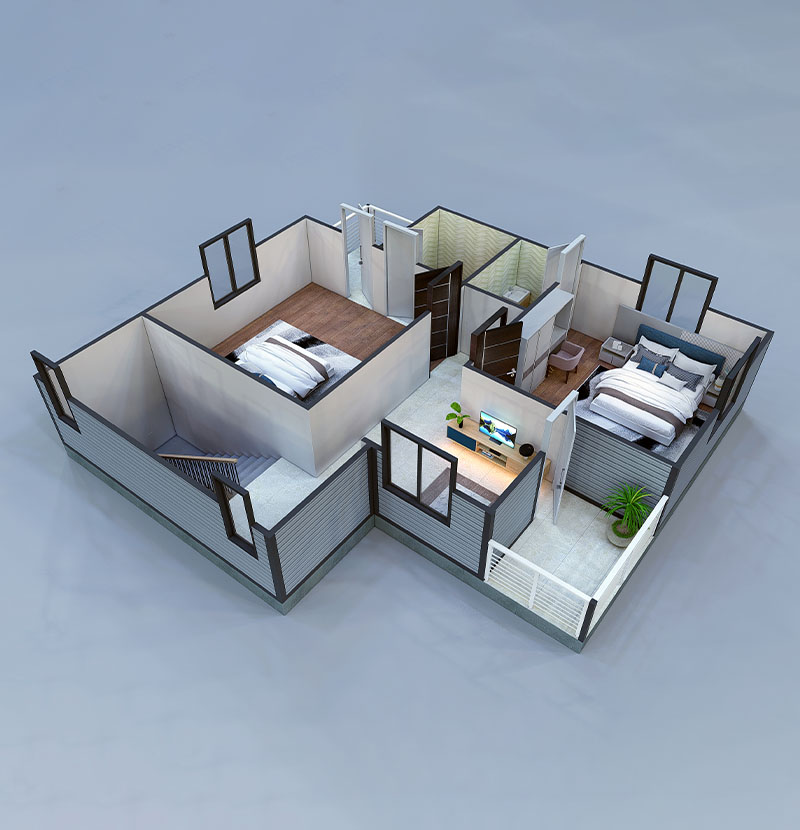

First Floor Interior Design

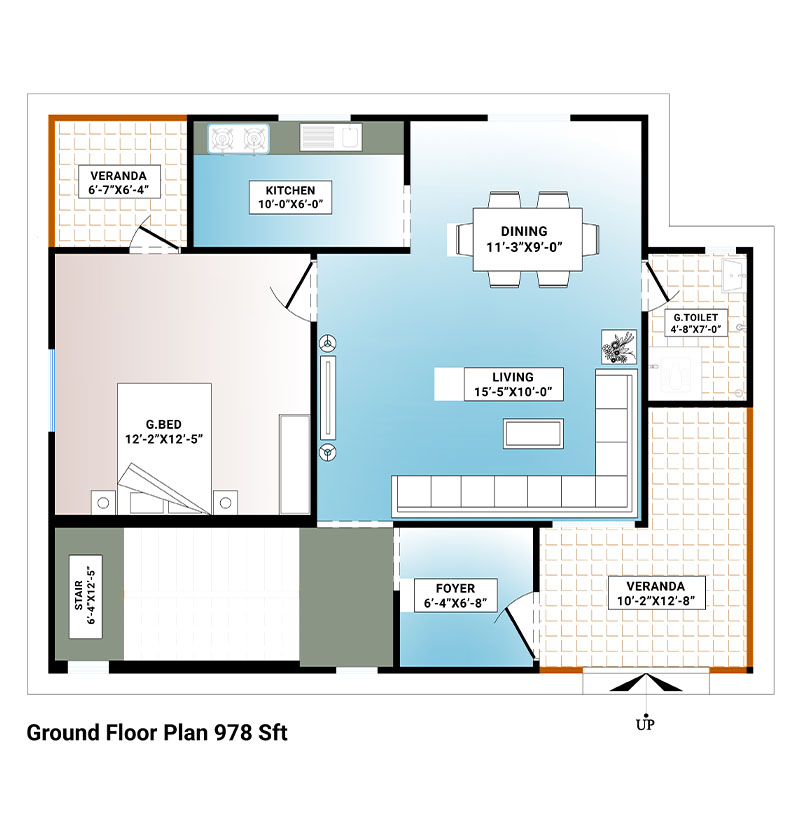

Ground Floor Plan

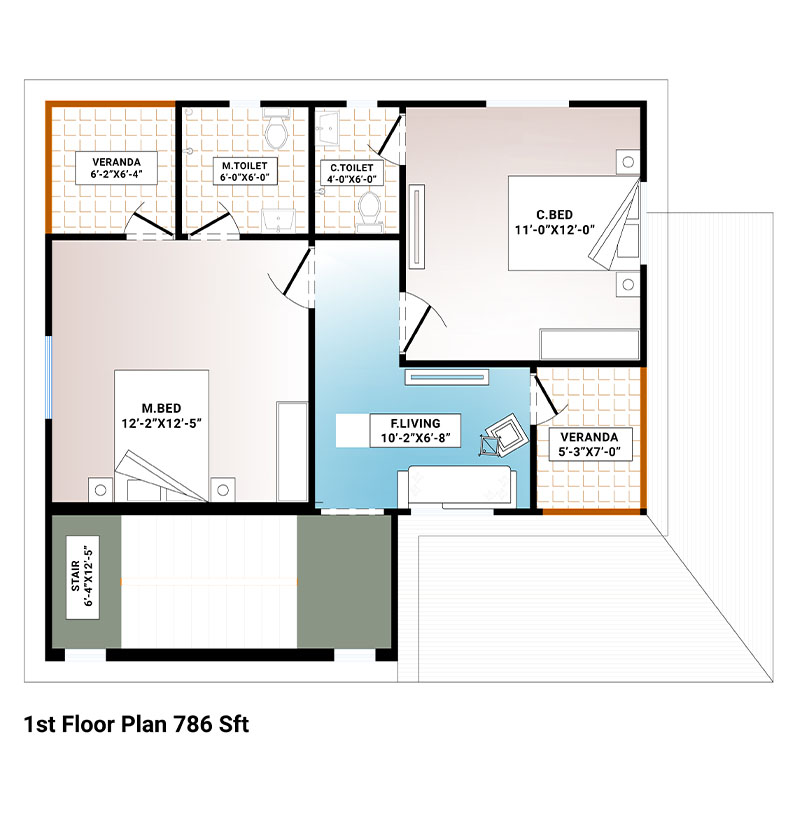

First Floor Plan
More About KYTT-EL 006?Discover Now!
CONSTRUCTION DETAILS
RCC foundation with Short Column, Grade Beam and 4-inch RCC slab will be provided with following specification -
. Existing Ground Level (EGL) to Foundation base depth= 3ft
. Existing Ground Level (EGL) to Plinth Level (PL) Height= 1.5ft
RCC foundation with Short Column, Grade Beam and 4-inch RCC slab will be provided with following specification -
. Existing Ground Level (EGL) to Foundation base depth= 3ft
. Existing Ground Level (EGL) to Plinth Level (PL) Height= 1.5ft
. Existing Ground Level (EGL) to Foundation base depth= 3ft
. Existing Ground Level (EGL) to Plinth Level (PL) Height= 1.5ft
The complete house is constructed with Light Gauge Steel (LGS) Structure frame. 1st floor slab will be of 4” RCC Decking Slab with LGS floor joist. The roof of the house is built with either LGS Roof Truss system along with LGS Roof Panel or 4” RCC Decking Slab with LGS floor joist based on the design.
Exterior wall - Exterior Wall Cladding will be of Steel Siding of 0.5mm thickness.
Interior wall : IInterior wall structure will be covered with 12mm moisture proof Gypsum board.
Toilet & Kitchen wall -9mm fiber cement board will be used to cover the wall structure of the toilets. Toilet wall will be covered with standard wall tiles up to 7ft height.
In the kitchen, 9 mm fiber cement board will be used by the sink and burner wall. The wall will be covered with standard wall tiles up to 7ft height.
Interior wall : IInterior wall structure will be covered with 12mm moisture proof Gypsum board.
Toilet & Kitchen wall -9mm fiber cement board will be used to cover the wall structure of the toilets. Toilet wall will be covered with standard wall tiles up to 7ft height.
In the kitchen, 9 mm fiber cement board will be used by the sink and burner wall. The wall will be covered with standard wall tiles up to 7ft height.
The colors of our exterior steel siding are the exclusive range of colors only available for our honorable customers– KY Two Tone Colors.
The interior walls are colored with standard quality Plastic Paint Color.
The interior walls are colored with standard quality Plastic Paint Color.
Main Entry– Wooden Door (3'-4'' X 7’-0”)
Toilet Entry- PVC Door (2'-6" X 7’-0”)
Bed Room Entry- UPVC Door (3'-0'’ X 7’-0”)
Toilet Entry- PVC Door (2'-6" X 7’-0”)
Bed Room Entry- UPVC Door (3'-0'’ X 7’-0”)
Room Window - Thai Aluminum Sliding Window with Grill (4'-0''X 4'-6'')
Toilet Window - Thai Aluminum Sliding Window with Grill (1'-6''X 1'-6'')
Kitchen Window - Thai Aluminum Sliding Window with Grill (3'-6''X 3'-6'')
Sunshade will be provided on top of every window.
Toilet Window - Thai Aluminum Sliding Window with Grill (1'-6''X 1'-6'')
Kitchen Window - Thai Aluminum Sliding Window with Grill (3'-6''X 3'-6'')
Sunshade will be provided on top of every window.
We are offering two types of steel roof tiles - Bamboo/Glazed Profile Steel Roof Tile with the thickness of 0.5mm on top of the roof.
The colors of our steel roof tiles are the exclusive range of colors only available for our honorable customers– KY Two Tone Colors.
All Floor will be covered with standard quality floor tiles (16”*16”).
The ceiling of all the rooms of the house will be of 12mm moisture proof Gypsum board supported by strong LGS structure system. The color of the ceiling will be good quality white Plastic Paint.
For the easy access of air, false ceiling and ventilation system will be provided.
For the easy access of air, false ceiling and ventilation system will be provided.
Good quality market standard electric cables & fixtures will be provided.
Toilet and kitchen fixtures will be standard quality Brass metal type.
Toilet and kitchen fixtures will be standard quality Brass metal type.
Glass wool insulation will be used under roof tiles and in all exterior wall. In addition to that bubble insulation will be provided at the exterior part of all outer walls beneath the steel siding. This helps to balance the temperature and make your experience of KY Two Tone house more comfortable.
Land Development: All kinds of Land development work will be out of scope of KY two Tone.
Main Electricity Line: Electric cable for house to nearest electric pole connection and the installation work of this connection will be out of scope of work of KY two tone.
Meter Fixing: House meter will be installed by client.
Water Supply & Septic tank: Septic tank & Overhead water tank work will be out of scope of work of KY two tone.
Anything that is not included in the scope of KY two tone will be out of scope of KY two tone.
Main Electricity Line: Electric cable for house to nearest electric pole connection and the installation work of this connection will be out of scope of work of KY two tone.
Meter Fixing: House meter will be installed by client.
Water Supply & Septic tank: Septic tank & Overhead water tank work will be out of scope of work of KY two tone.
Anything that is not included in the scope of KY two tone will be out of scope of KY two tone.
